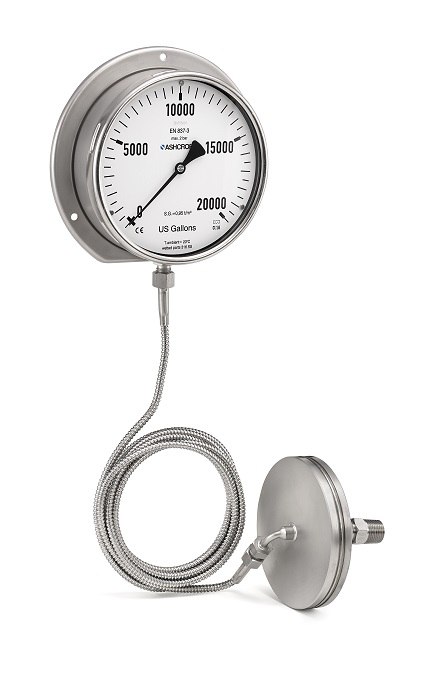

TC Tank Level Gauge
The Ashcroft® TC tank level gauge provides accurate level measurement of liquid contents within any form of containment tank. It’s integral sensor converts hydrostatic head pressure, thereby allowing continuous readings. The rugged 316 stainless steel construction proves ideal for use with oil, water and other compatible chemicals.
Key Features:
- Suitable for symmetrical or asymmetrical vented tanks
- Self-powered design
- Large selection of mounting options
- Remote mounting to lengths of 90 feet
Applications:
Process Markets:
Offshore
Specialized Deep Depth Equipment
Hyperbaric Conditions
Specifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1.6% of span
Size
100 mm, 140 mm, 160 mm
63 mm
Pressure Ranges
60 in. H2O to 360 in. H2O
Process Connection Size
1/2 NPT Male
1/4 NPT Male
Process Connection Location
Lower
Case Style
Open Front
Weather Protection
IP45
Movement
Nickel plated brass
Window
Glass
