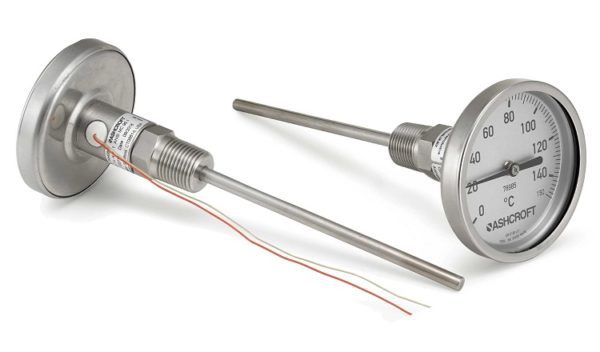

Model K Dual Sensor Thermometer
The Ashcroft® Model K Dual Sensor thermometer provides a high quality product with reliable performance from the combination of a Bimetal and a K Thermocouple. Two independent sensors providing accurate temperature readings with dampening options when vibration is present. An ideal choice for reducing installation costs and providing an added space reduction benefit.
Key Features:
- All Stainless Steel Construction
- 2 Independent sensors in 1 measuring point
- K Thermocouple: Class 1 according to ANSI MC 96.1 or IEC 60584-2/EN 60584-2 per request
- Silicone dampened coil for reduction of pointer flutter on high vibration application and provides improved response times
Applications:
Process Market:
Offshore Oil Rigs
Chemical and Petrochemical Plants
Water and Wastewater Pressure Control
Pulp and Paper
Refineries
Power
Industrial Market:
General Industrial
HVAC
Equipment Skids
Medical and Life Sciences:
Pharmaceutical / Biotech
Food and Beverage
Specifications
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
Bimetal Accuracy: EN 13190 Class 1
K Thermocouple : Class 1 ANSI MC 96.1 & IEC 60584-2/EN 60584-2
Stem Length
90mm to 2,000mm
Dial Sizes
80, 100, 130, 150 mm
Process Connection
1⁄2 NPT Fixed
Stem Diameter
6, 6.35, 8, 9 mm
Case & Stem
304 Stainless Steel
316 Stainless Steel
Process Connection Location
Centerback
Window
Glass, Safety Glass or Acrylic
