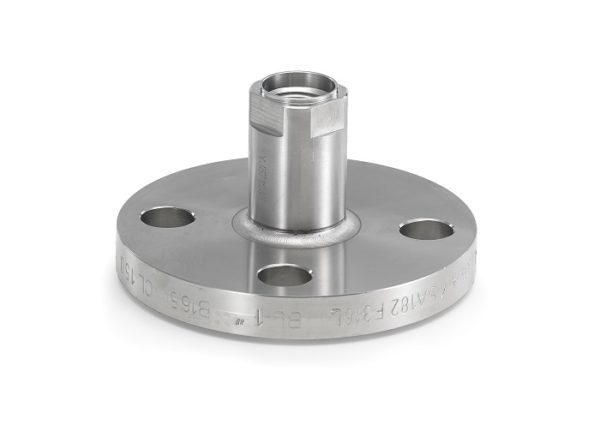

DF Flush Flanged Diaphragm Seal

The Ashcroft® DF flush flanged diaphragm seal uses a diaphragm welded directly to the assembly flange. This eliminates much of the cost associated with bulky lower housings made from exotic and expensive wetted materials. The flush-mounted diaphragm prevents clogging and is available in a full range of metallic and coated materials.

Key Features:
  • Flush design minimizes the use of expensive specialty wetted materials
  • Flush-mounted diaphragm prevents clogging of process media
  • Available with optional Flushing Ring

Process Market:
Oil and Gas
Chemical and Petrochemical
Water and Wastewater

Process Applications:
Oil and Gas Fracking
NACE Compliant Processes
Biogas and Diesel
