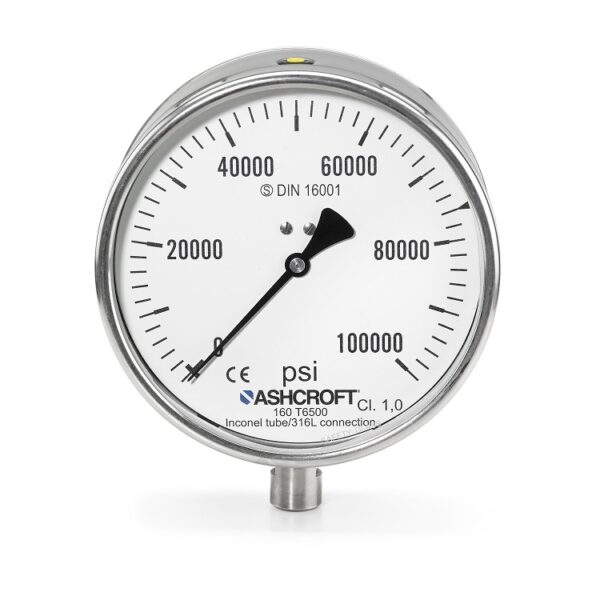

T6500 Stainless Steel Pressure Gauge
The Ashcroft® T6500 is an process pressure gauge designed to EN837-1 with a solid front stainless steel case designed for high performance, increased safety and reliability. Features include 100mm and 160mm sizes, PLUS!™ performance, and optional ATEX approvals.
Key Features:
- All-stainless steel movement
- Socket welded to case
- High over pressure up to 400% of range option XRA (see datasheet for specifications)
- Low ambient temperature option for arctic conditions from -94°F (-70°C)
- PLUS!™ Performance (option)
Applications:
Process Market:
Offshore Oil Rigs
Chemical and Petrochemical Plants
Power
Pulp and Paper
Industrial Market:
Machine Equipment
Specialized OEM Equipment
Medical and Life Sciences:
Food and Beverage
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings
Accuracy
±1% of span (STD.), ±0.5% of span (OPT.)
Size
100mm, 160mm
Process Connection Size
¼ NPT Male, ½ NPT Male, G ¼ NPT, B Male, G ½ NPT B Male
9⁄16-18 UNF-2B (high pressure connection)
Process Connection Location
Lower
Pressure Ranges
High pressure to 60,000 psi
Vacuum to 20,000 psi
Case Style
Solid Front
Window
Glass (STD.), polycarbonate, safety glass (OPT.)
Weather Protection
Dry: IP66 and NEMA 4X
Liquid filled: IP66/67 and NEMA 4XHermetically sealed case: IP66/67 and NEMA 4X
Mounting
flush
pipe, mount
Stem, Surface
Movement
Adjustable
Dampening
Liquid fill, throttle screw, PLUS!™ Performance
Certifications & Approvals
ATEX: Conformity acc. to RL 2014/34/EU appendix X for mechanical equipment in potential hazardous areas Optional

CRN
Marking II 2 GD c IIC Tx: File No. 35134585 at notified body 0044, TÜV NORD CERT (only with safety glass or polycarbonate glass)
