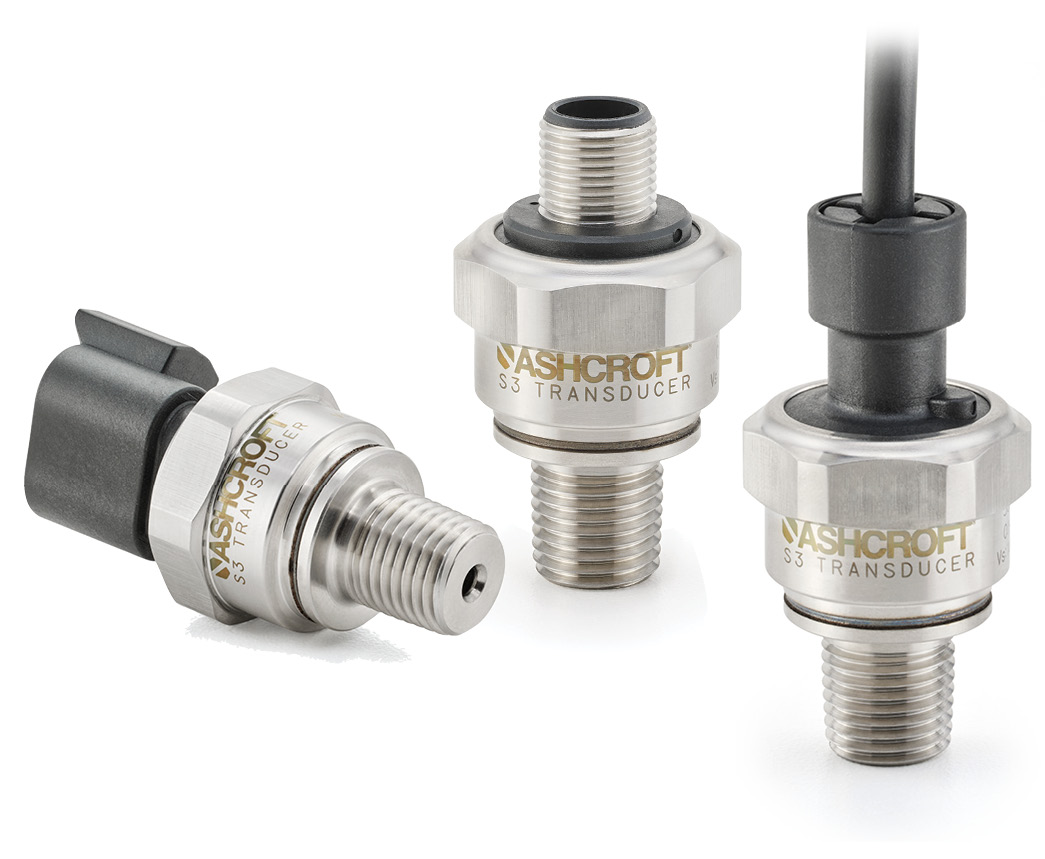

S3 OEM Pressure Transducer
The AshcroftĀ® S3 OEM pressure transducer incorporates Ashcroft’s proven CVD sensing technology in a cost-effective transducer that provides superior performance. The S3 is a pressure sensor designed to provide uncompromised performance and reliability in hydrogen applications, as well as applications that see high shock, vibration and excessive pressure cycling. The S3 utilizes a high-performance ASIC with digital compensation to provide excellent temperature performance, while the thin-film sensor technology offers unmatched long-term stability. An ideal choice in pressure measurement for mid to high volume applications.
Key Features:
- Compact Design
- All Stainless steel and A286 sensor material
- Hydrogen Compatible
- Polysilicon thin film sensor
- Highly configurable, wide selection of pressure & electrical connectors, outputs, and pressure ranges
Applications:
Industrial and OEM Applications:
Fuel cells
Compressed hydrogen gas
Commercial vehicles
Heating & cooling
Hydrogen storage
Ammonia production
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
72 Ā°F Ā±2 Ā°F (21 Ā°C Ā±1 Ā°C)
Accuracy
Ā±1.0% of Span (Ā±0.50% Optional): Includes non-linearity, hysteresis. non-repeatability, zero offset and span setting errors at reference temperature
Total Error Band Accuracy
Ranges Vac to 10,000 psi:
Ā±1.0% of Span: From 0 ĀŗC to 85 ĀŗC (32 ĀŗF to 185 ĀŗF)
Ā±2.0% of Span: From 85 ĀŗC to 125 ĀŗC (185 ĀŗF to 257 ĀŗF)
Ā±2.0% of Span: From -40 ĀŗC to 0 ĀŗC (-40 ĀŗF to 32 ĀŗF)
Ranges greater than 10,000 psi:
Ā±2.0% of Span: From -20 ĀŗC to 0 ĀŗC (-4 ĀŗF to 32 ĀŗF)
Includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors
Stability
ā¤Ā±0.25% span/year at reference conditions
Durability
>50 million cycles
Pressure Ranges
Compound and gauge pressure, VAC to 20,000 psi
Outputs
4-20 mA, 0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-6 Vdc, 0.5-4.5 Vdc and 0.5-4.5 Vdc ratiometric (requires 5.0 Vdc supply)
Ingress Rating
IP65/NEMA 4 for: EN 175301-803 Form A & C (DIN 43650 A & C)
IP67/NEMA 6 for: Metri-Pack, Shielded Cable, Deutsch DT, AMP Econoseal and M12 electrical connectors
Wetted Material
Process Connection: 316 stainless steel
Diaphragm: 316L with 316L stainless steel adapter from Vac to 6,000 psi, A286 with 316L stainless steel adapter from 7,500 to 25,000 psi
Non-Wetted Materials
Housing: 316L Stainless steel
