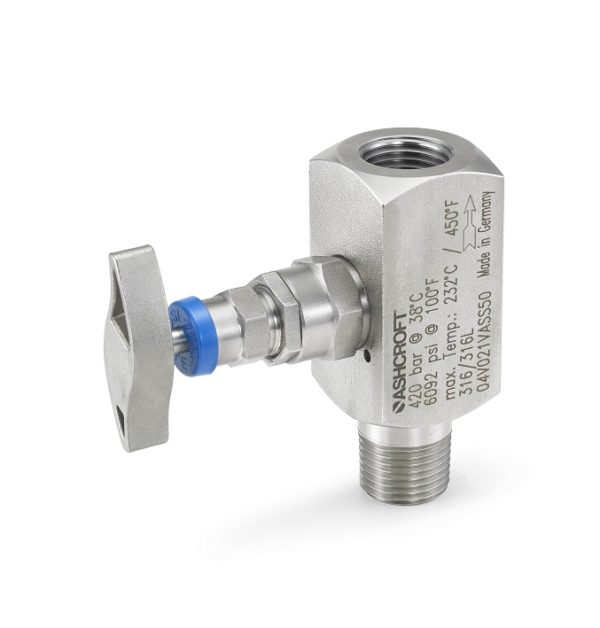

Gauge Valve-V02
The Ashcroft® gauge valve-V02 is designed to mount directly to the instrument for the purpose of isolating the attached instrument for protection or removal.
Key Features:
- Isolates process from instrument assembly
- 316L stainless steel construction
- Support mounting brackets available
- Color-coded dust caps prevent dust ingress and identify handle functions
- PTFE packing (other materials available upon request)
- Stem with cold rolled surface, back seat and non-rotating needle tip
- Supplied with wetted parts according to NACE MR0175/MR0103
- Material Traceability Report available per EN 10204 3.1
Applications:
Process Markets:
Oil & Gas Industry
Chemical Industry
Power Plants
Waste Incineration Plants
Seawater Desalination Plants
Steel Mills
Cement Plants
Specifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Process Connection
½ NPT Male, ½ NPT Female
Construction Material
316L Stainless Steel
Maximum Pressure Rating
6,092 psi at 140°F (60°C)
Maximum Temperature Rating
392°F (200°C) at 1,305 psi
