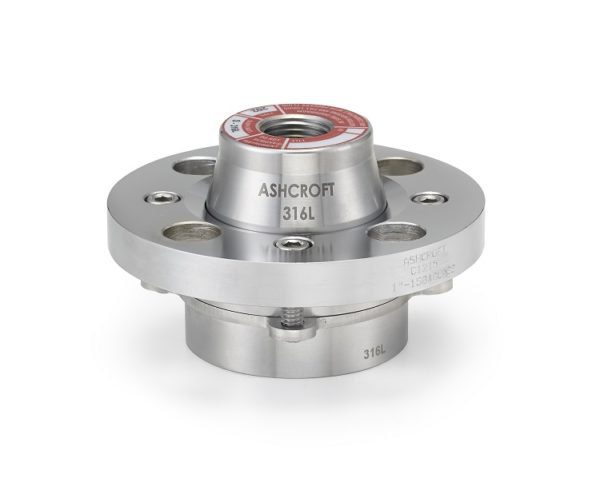

202-203 Flanged Diaphragm Seals

The Ashcroft® 202 and 203 diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, they are also applied when media can potential clog an instrument connection. Ideal for satisfying many challenging applications.

Key Features:
  • 316L stainless steel top housing (standard)
  • Wide selection of diaphragm and lower housing materials
  • Diaphragm welded (metallic) or bonded (elastomer) to top housing
  • Flush port (type 203) provides easy cleaning / flushing due to process media prone to clogging
Applications:

Process Market:
Oil and Gas
Refineries
Chemical and Petrochemical
Water and Wastewater

Process Applications:
Oil and Gas Fracking
NACE Compliant Processes (Sour Gas Separation)
Biogas and Biodiesel
