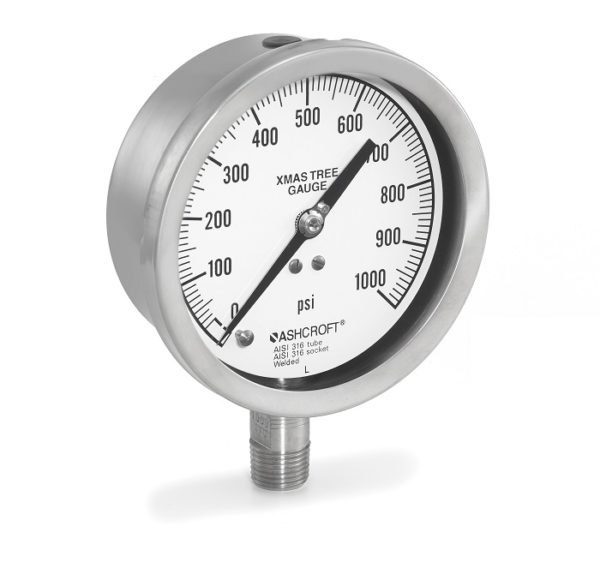

1020S Christmas Tree Pressure Gauge
The Ashcroft® 1020S christmas tree pressure gauge is used specifically within oil and gas fields. This model requires minimal field maintenance due to its design, providing a safe and reliable instrument platform. An ideal pressure gauge for satisfying challenging offsore rings or wellhead applications.
Key Features:
- Stainless steel movement with Teflon®-coated pinion and shaft
Applications:
Process Market:
Offshore Oil and Gas
Oil and Gas Wellheads
Industrial Market:
Equipment Skids
Product Information
Specifications
- Accuracy
- ±1.0% of span (ASME B40.100 Grade 1A)
- Size
- 4 1/2"
- Process Connection Size
- 1/2 NPT Male
- 1/4 NPT Male
- Process Connection Location
- Lower
- Pressure Ranges
- 1,000 to 20,000 psi
- Case Style
- Open Front
- Window
- Glass
- Weather Protection
- Case is not sealed and recommended for weather protected environment only
- Liquid filled or field fillable: IP65, NEMA 4
- Mounting
- Stem or Surface
- Movement
- Adjustable
