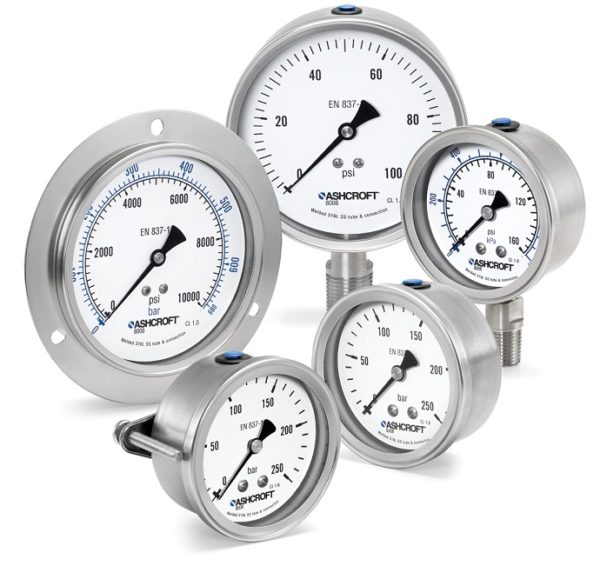

8008S Pressure Gauge
The Ashcroft® 8008S delivers the advanced features of a larger gauge in a small, economical package for applications requiring an all stainless steel instrument for harsh environments. Laser welded wetted 316L stainless steel components ensure system integrity for corrosive medias. A solid front case option is also available to enhance operator safety along with numerous mounting selections to save space and ease installation.
Key Features:
- Meeting EN837-1 and ASME B40.100 specifications allows for international use
- R110 and NGV 3.1 approvals
- FlutterGuard™ standard on dry gauges
- Extensive offering of process connection locations and ranges
- Economical solution when all stainless gauges are required
- Designed to meet MSL Helium leak test of 1 x 10-6 scc/s
- Optional solid front design (XS3)
Applications:
Industrial Markets:
- Hydraulic systems
- Food and beverage
- Compressors and pumps
- Irrigation equipment
- Refrigerant applications
- Compressed (CNG) and Liquified (LNG) natural gas applications
- Hydrogen Cell/Applications
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
63 mm: ±1.6% of span per EN837-1, ±1% of span per EN837-1 (thru 10,000 psi), ±2-1-2% of span ASME B40.100 (thru 10,000 psi)
100 mm: ±1% of span per EN837-1 (thru 10,000 psi)
Size

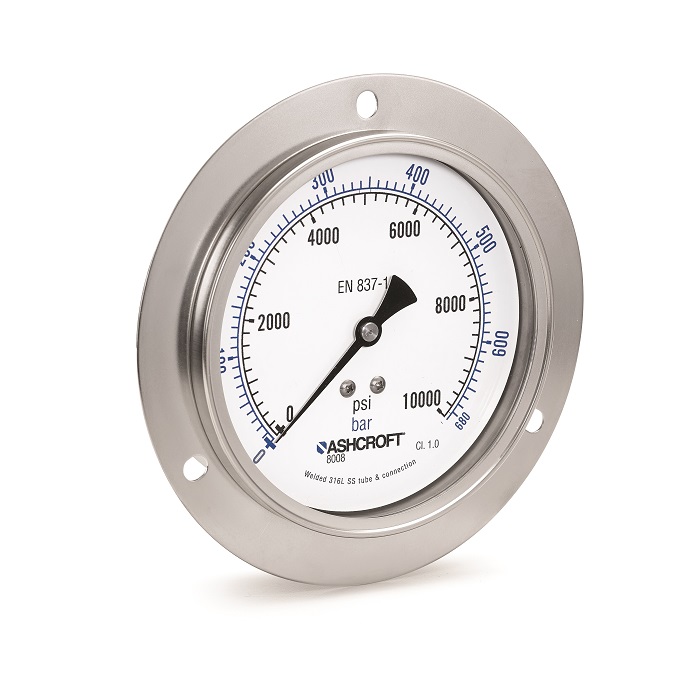

63 mm (2½ ̋), 100 mm (4 ̋)
Pressure Ranges
Vacuum, compound to 20,000 psi

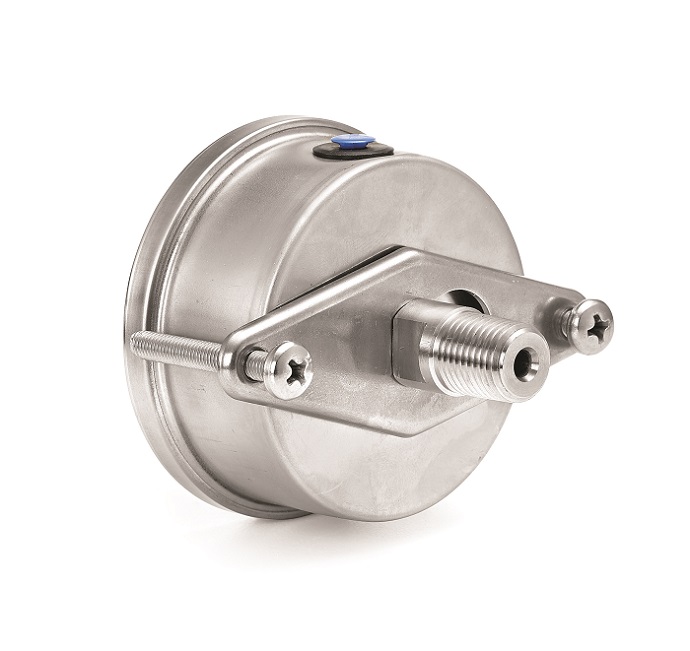

Process Connection Location
Lower, center back or lower back
Process Connection Size
63mm: 1⁄8 NPT, ¼ NPT, G¼ B, ¼ BSPT, SAE-4 7⁄16-20, M14x1.5, #4JIC, ¼ Tube stub Male, 3⁄8 Tube stub Male, ½ Tube stub Male
100mm: ¼ NPT, ½ NPT, G¼ B, G½ B, M14x1.5, M20x1.5, ¼ BSPT, ½ BSPT, ¼ Tube stub Male, 3⁄8 Tube stub Male, ½ Tube stub Male, ¼ High pressure Female
Process Connection Material
316 Stainless steel
Movement
316 stainless steel Laser Welded
Window
Glass
Polycarbonate
Safety Glass
Dampening
FlutterGuard™
Glycerin fill
Silicone fill
Case/Ring Style
304 Stainless Steel
316 stainless steel
Weather Protection
IP66 rating: NEMA 4X for water and dust ingress
