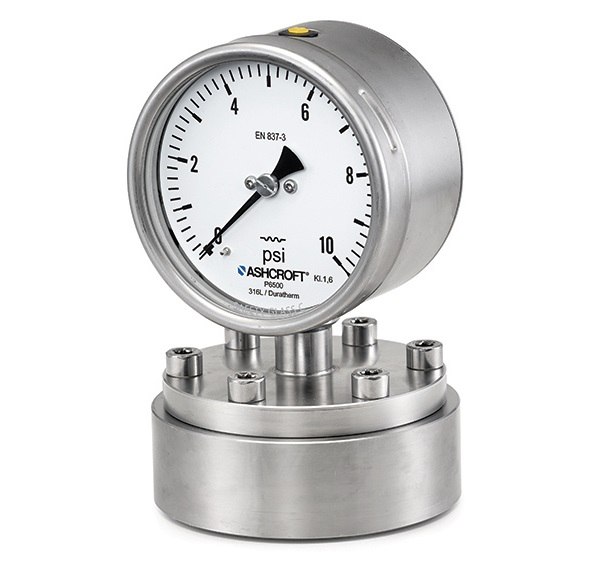

P5500 & P6500 Low Pressure Diaphragm Gauge
The AshcroftĀ® P5500/P6500 is a diaphragm style process pressure gauge designed for challenging low pressure processes with high overload protection. Utilizing a unique “dry cell” mechanism, it has no system fill fluid with may pose hazards in certain applications. Pressure connections include threaded and flange mounting options, ranges as low as 10 in. H2O and optional ATEX approvals.
Key Features:
- Ā Utilizes a unique “dry cell” mechanism
- 316L stainless steel case welded to socket for system integrity
- Overload protection option up to 10 times F.S. range (optional)
- IP66 for use outdoor or in humid environments
Applications:
Process Markets:
Oil & gas
Chemical and Petrochemical
Food and Beverage
Vacuum Pumps
Gas Measurement, Burners
Leak Detection
Industrial Market:
Air Conditioning
Food and Beverage Industry
Machine and Apparatus Construction
Leak Detectors
Product Information
Specifications
- Accuracy
- Ā±1.6% of span
- Size
- 100 mm, 160 mm
- Process Connection Size
- Flanged: 1/2", 1 Ģ, 2 Ģ, and 3 Ģ
- Threaded: Ā¼ NPT Male, Ā½ NPT Male
- Process Connection Location
- Lower
- Pressure Ranges
- 10 in. H2O up to 300 psi
- Case Style
- P5500: Open front
- P6500: Solid front
- Window
- Safety glass (STD.) Acrylic (OPT.)
- Weather Protection
- Dry: IP66 and NEMA 4X
- Liquid filled/hermetically sealed: IP66/67 and NEMA 4X
- Mounting
- Stem
- Dampening
- Dampeners, capillary and snubbers
