E2 – Sanitary Pressure Transducer
Effective immediately due to supply chain shortages, Ashcroft is unable to accept new orders for the E2 pressure transducer. We offer several other pressure sensor products that may be considered. We anticipate the E2 product line will be available again in July 2023. Product Chart

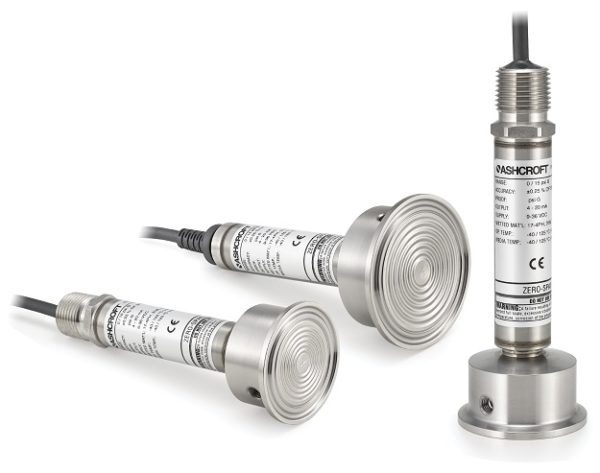

The Ashcroft® E2 sanitary pressure transducer combines proven thin film sensor technology with a sanitary isolation seal. Engineered for easy disassembly and cleaning, it provides an electropolished mating surface, wide selection of electrical connections and fill fluids. The E2 meets 3A approval for sanitary applications.
Key Features:
- Available with 1.5″ and 2.0″ Tri-Clamp® connection
- 3A approved
- Wide selection of electrical terminations
- Customized configurations
- External magnetic offset and span adjustment
Applications:
Process Applications:
Food and Dairy
3A Sanitary Applications
Pharmaceutical
Biotech and Medical Equipment
Filtration
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
21°C ±2°C (70°F ±3°F)
Accuracy
±0.25% of span, ±0.50% of span, ±1.0% of span, Terminal Point Method includes: hysteresis, linearity, repeatability, offset and span
Stability
≤±0.25% span/year at reference conditions
Durability
>10 million cycles
Process Connection
1.5˝ Tri-Clamp
2.0˝ Tri-Clamp
Pressure Ranges
absolute ranges: 0 to 500 psia
Vacuum to 1,000 psig
Ingress Rating
IP66
IP67
IP69K (consult factory)
Wetted Material
Diaphragm: 316L Stainless steel (12-20 Ra Surface finish)
Process Connection: 316L Stainless steel (Electro-polished)
Non-Wetted Materials
Housing: 316L Stainless steel
Outputs
0-10 Vdc (3 Wire)
0-5 Vdc (3 Wire)
0.1-10 Vdc (3 Wire)
0.1-5 Vdc (3 Wire)
0.5-4.5 Vdc (3 Wire)
1-11 Vdc (3 Wire)
1-5 Vdc (3 Wire)
1-6 Vdc (3 Wire)
20-4 mA (2 Wire)
4-20 mA (2 Wire)
