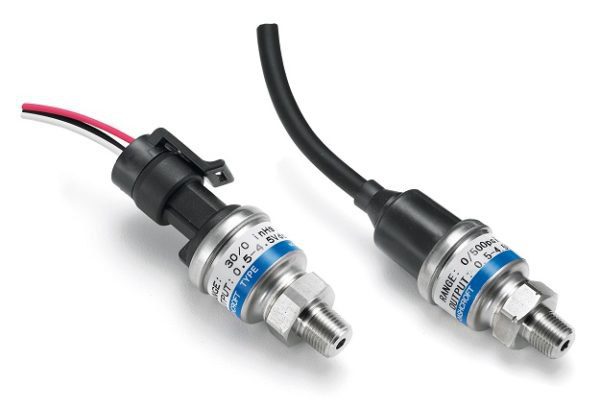

KM15 OEM Pressure Transducer
The Ashcroft® KM15 OEM high volume pressure transducer is ideal when a durable and economical pressure transducer is needed. Combining a high performance ASIC with proven polysilicon thin film sensor technology provides a highly accurate, stable, and rugged sensor. A perfect choice for satisfying OEM pressure measurement requirements.
Key Features:
- Pressure ranges from vacuum to 7,500 psi
- +/- 0.50% or +/- 1.0% of span accuracy
- All-welded sensor and pressure connection
- Highly configurable; wide selection of pressure connections and electrical terminations
- Voltage outputs
- High EMI/RFI immunity rating
- CE approved
- RoHS compliant
Applications:
Industrial and OEM Applications:
Off Road Equipment
Construction Machinery
Compressors & Pump Control
Hydraulic Sensing
Performance Racing
Diagnostic Kits
Engine Monitoring
Specifications
Certifications & Approvals
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
73°F (23°C)
Accuracy
±0.50% (=/>100 psi) or ±0.50% (<=/< 75 psi of span BFSL (Best Fit Straight Line Method); includes non-linearity, hysteresis and non repeatable effects at Reference Temperature
Best Fit Straight Line (BFSL)
±0.50% or ±1.00% of span (depending on pressure range)
Stability
±0.25% Span/year
Durability
>10 million cycles
Wetted Material
Diaphragm: 17-4PH Stainless steel
Process Connection: 304 Stainless steel
Non-Wetted Materials
Housing: 300 series Stainless steel
Pressure Ranges
Vacuum to 7,500 psi
Outputs
1-5 Vdc (8-32Vdc supply), 0.5-4.5 Vdc Ratiometric (5Vdc supply)
