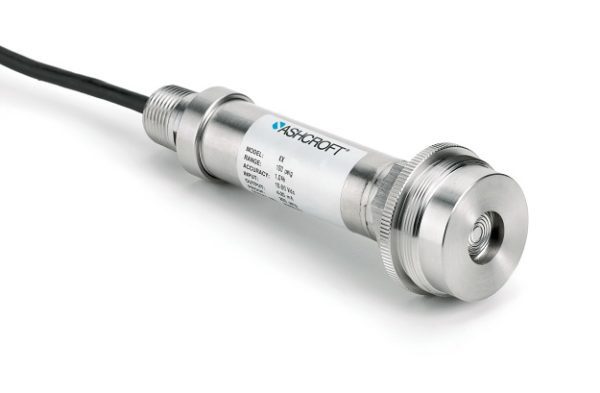

KX Flush Mount Pressure Transmitter
The Ashcroft® KX pressure transmitter combines benefits of thin film performance with the utility of a flush-mounting sensing diaphragm. The small sensing area and low internal volume assure accurate measurement under severe conditions. An ideal sensor for use with process media that can clog standard instrument connections.
Key Features:
- Pressure ranges from 60 psi to 5,000 psi
- +/- 1.0% of span accuracy
- All Stainless steel design with flush-mounted integral 316 Stainless steel diaphragm
- Voltage and 4-20mA output options
- PMC adapter
- NEMA 4X Housing
Applications:
Industrial and OEM Applications:
Paint Spray Booths
Food Processing
Adhesives
Process Applications:
Pulp and Paper
Wastewater
Heavy Medium Pumping Processes
Specifications
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Reference Temperature
68°F (20°C)
Accuracy
±1% of span
Terminal Point Method: includes non-linearity, hysteresis, nonrepeatability, zero offset and span
Best Fit Straight Line (BFSL)
±0.75% of span
Pressure Ranges
60 psi to 5,000 psi
Stability
±0.5% Span/year at reference conditions
Durability
>10 million cycles
Wetted Material
Diaphragm: 316Ti Stainless Steel
Process Connection: 316L Stainless Steel
Non-Wetted Materials
304 Stainless Steel
Outputs
1-5 Vdc, 1-6 Vdc, 4-20mA
