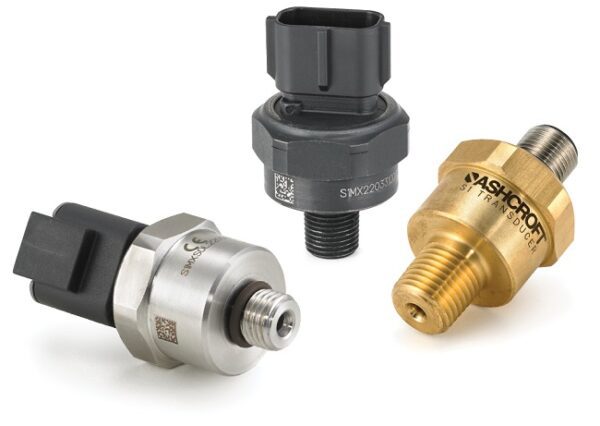

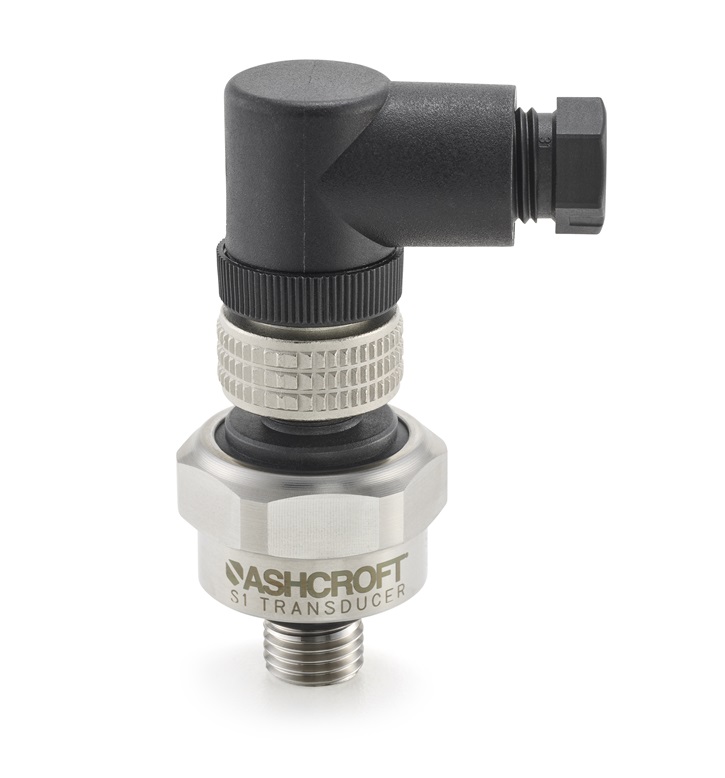

S1 OEM Pressure Transducer
The AshcroftĀ® S1 OEM pressure transducer incorporates Ashcroft’s proven CVD sensing technology to provide a cost-effective transducer that provides superior performance. The S1 is a hydraulic pressure sensor designed to provide uncompromised performance, especially for applications that see high shock, vibration and excessive pressure cycling. The S1 utilizes a high-performance ASIC and digital compensation to provide excellent temperature performance, while the thin-film sensor enables long-term stability. An ideal choice for pressure measurement for mid to high volume applications.
Key Features:
- Compact Design
- All Stainless Steel sensor element
- Polysilicon thin film sensor
- Highly configurable, wide selection of pressure & electrical connectors, outputs, and pressure ranges
Applications:
Industrial and OEM Applications:
Mobile Hydraulics
Ammonia/Refrigeration Equipment
Racing
Agriculture
Pump Control
Product Information
Specifications
- Reference Temperature
- 72 Ā°F Ā±2 Ā°F (21 Ā°C Ā±1 Ā°C)
- Accuracy
- Ā±1.0% of Span (Ā±0.50% Optional): Includes non-linearity, hysteresis. non-repeatability, zero offset and span setting errors at reference temperature
- Total Error Band Accuracy
- Ā±1.0% of Span: From 0 ĀŗC to 85 ĀŗC (32 ĀŗF to 185 ĀŗF)
- Ā±2.0% of Span: From -40 ĀŗC to -20 ĀŗC (-40 ĀŗF to -4 ĀŗF)
- Ā±2.0% of Span: From 85 ĀŗC to 125 ĀŗC (185 ĀŗF to 257 ĀŗF)
- Includes the combined effects of non-linearity (Terminal Point Method), hysteresis, non-repeatability, temperature and zero offset and span setting errors
- Stability
- ā¤Ā±0.25% span/year at reference conditions
- Durability
- >50 million cycles
- Pressure Ranges
- Compound and gauge pressure, VAC to 10,000 psi
- Outputs
- 4-20 mA, 0-5 Vdc, 0-10 Vdc, 1-5 Vdc, 1-6 Vdc, 0.5-4.5 Vdc and 0.5-4.5 Vdc ratiometric (requires 5.0 Vdc supply)
- Ingress Rating
- IP65/NEMA 4 for: EN 175301-803 Form A & C (DIN 43650 A & C)
- IP67/NEMA 6 for: Metri-Pack, Shielded Cable, Deutsch DT, AMP Econoseal and M12 electrical connectors
- Wetted Material
- Diaphragm: 17-4PH Stainless steel
- Process Connection options: 304 Stainless steel, Aluminum (Anodized or Non-anodized), Brass, Carbon Steel (Zinc Chromate)
- Non-Wetted Materials
- Housing: 304 Stainless steel, Aluminum (anodized or non-anodized), Brass or Carbon Steel (Zinc Chromate)
