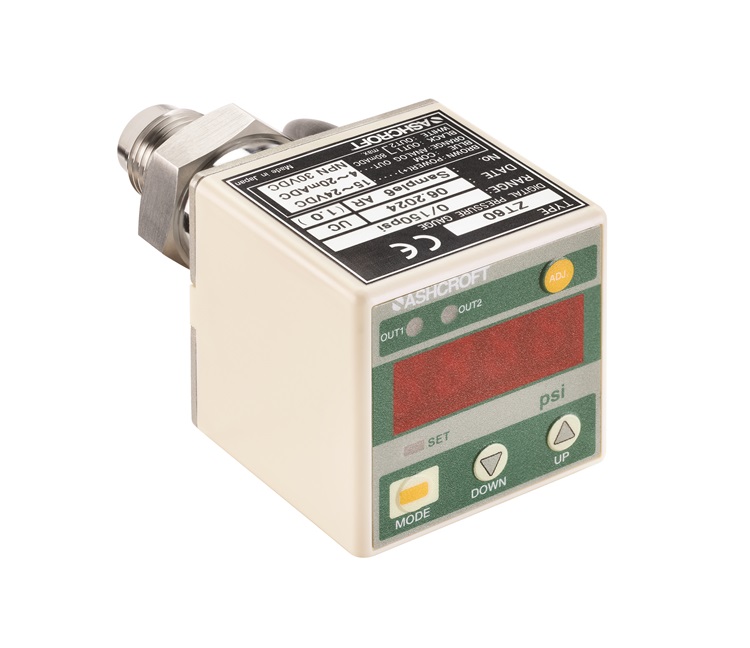

ZT60 High Purity Pressure Transmitter with Display
The Ashcroft® ZT60 high purity transmitter with display is designed for use in UHP gas and fluidic delivery systems. It incorporates an LED digital display which features the ability to program functions such as scaling, loop check, comparator output and several other functions suitable for use with semiconductor processes and high purity gases.
Key Features:
- Bright easy to see LED display with NPN or PNP switch outputs
- Available in gauge and compound ranges
- 4-20mA or 1-5 Vdc output
- 316L Stainless Steel and Copper Nickel wetted parts for protection against corrosion
- 7RA (0.18 μm) surface finish available
- Class 10 cleanroom packaged
- CE approved and RoHS compliant
- A wide variety of available process connections
Applications:
Industrial:
High Purity Gas Delivery Systems
Gas Sticks
Process Gas Analyzers
Purge and Exhaust Gas Systems
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±0.50% or ±1.0% of span @ 73 °F (23 °C) Accuracy includes the effects of linearity, hysteresis and repeatability
Stability
±0.25% Span/year
Outputs
1-5 Vdc (3 Wire)
4-20 mA (2 Wire)
Pressure Ranges
Gauge: 0-30 psi to 0-3,000 psi
Vacuum & 15 psi to Vacuum & 300 psi
Process Connection
9/16-18 UNF or ⅞-14 UNF (compatible with various VCR®, UJR and CVC fittings
Wetted Material
316L Stainless Steel
Copper Nickel
Non-Wetted Materials
Polycarbonate ABS
