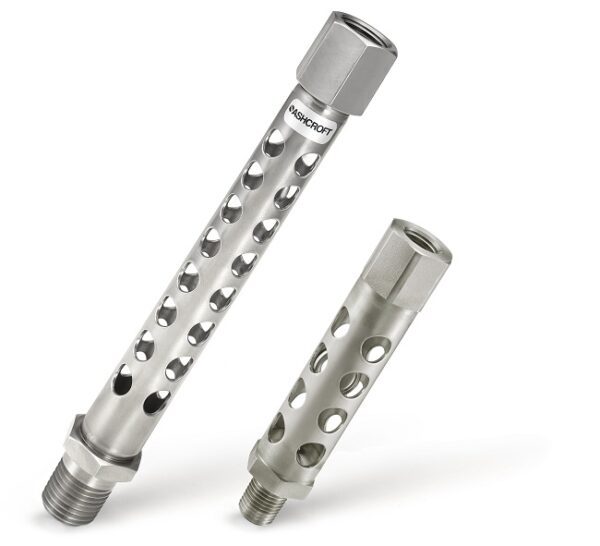

2098 Mini-MicroTube™ & 2198 MicroTube™ Siphons

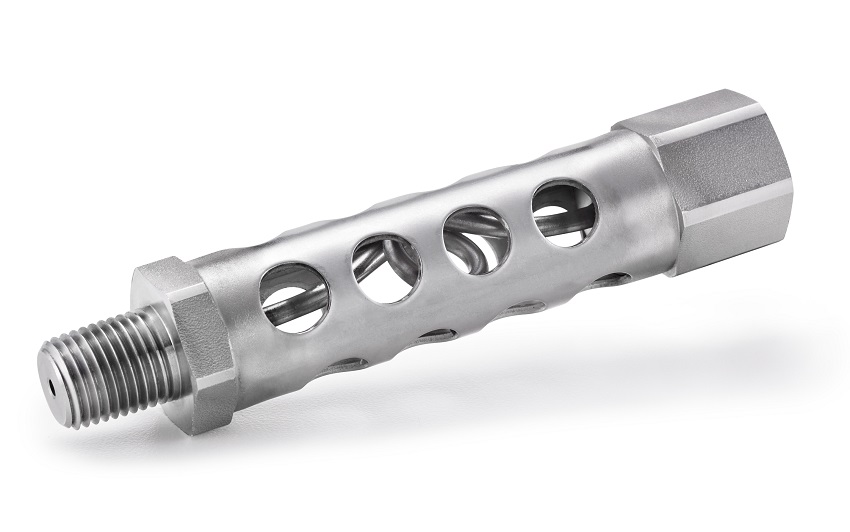

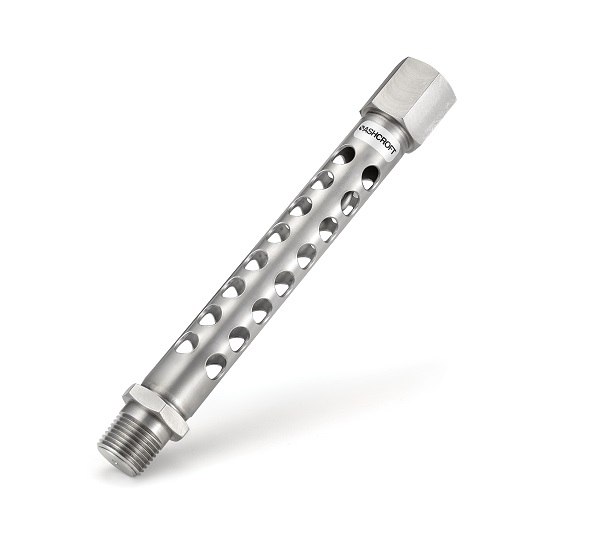

The Ashcroft® 2098 Mini-MicroTube™ and 2198 MicroTube™ siphons protect pressure instruments from the effects of elevated temperatures. The reduced internal volume allows for superior temperature dissipation. The 2098 is designed for limited space applications. The 2198 can also be used where a diaphragm seal is required to be attached directly to the process.
Key Features:
- Effectively protects instruments from elevated temperatures
- Siphon and sensing instrument mount directly to the process
- 316L stainless steel, compatible with many process media
- Used with gauges, switches, transducers and diaphragm seals
Applications:
Process Markets
Chemical and Petrochemical
Oil and Gas
Power
Specifications
Datasheets & Instruction Manuals
Drawings & Product/Technical Information
Process Connection
¼ NPT Male, ½ NPT Male G ¼ B Male, G ½ B Male
Construction Material
316L Stainless Steel
Temperature Rating
2098: 600 °F
2198: 800 °F
Max Allowable Working Press.
2098: 5,000 psi at 600 °F (316 °C)
2198: 5,000 psi at 800 °F (427 °C)
Drawings:
Don't see what you are looking for? Click here to request more drawings.
Resources & Tools
Materials Selector
Use the selector to review compatible wetted materials and requirements of your application.
Unit Converter
Need to convert measurement units? Check out our quick and easy tool to convert pressure, temperature and flow units of measure.
Product Information
To learn more about the technical details for options available, review our product information (PI) pages.
