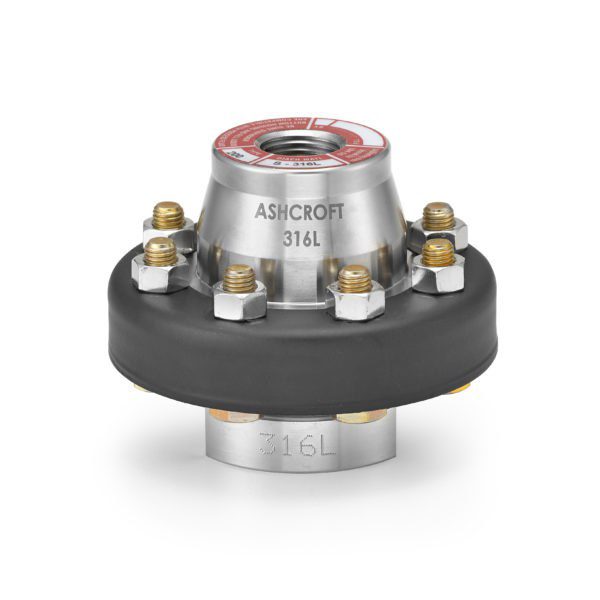

300-301 Threaded Diaphragm Seals

The Ashcroft® 300 and 301 threaded diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, these are also applied when media exhibits high temperature or has the potential to clog an instrument connection. Ideal for satisfying many challenging applications.

Key Features:
  • 316L stainless steel top housing (standard)
  • Wide selection of diaphragm and lower housing materials
  • Diaphragm (elastomer) clamped between top and bottom housings
  • Flushing port (type 301) provides easy cleaning / flushing for process media prone to clogging
Applications:

Process Market:
Oil and Gas
Refineries
Chemical and Petrochemical
Water and Wastewater

Process Applications:
Oil and Gas Fracking
Biogas and Biodiesel

Specifications

Certifications & Approvals

Data Sheets & Instruction Manuals

Drawings & Product/Technical Information

Resources & Tools

Min/Max Guide

IMPORTANT! When selecting a diaphragm seal or isolation ring, refer to the Min/Max Guide (PI page) for compatibility with this gauge.

Learn More

Materials Selector

Use the selector to review compatible wetted materials and requirements of your application.

Learn More

Unit Converter

Need to convert measurement units? Check out our quick and easy tool to convert pressure, temperature and flow units of measure.

Learn More

Product Information

To learn more about the technical details for options available, review our product information (PI) pages.

Learn More
