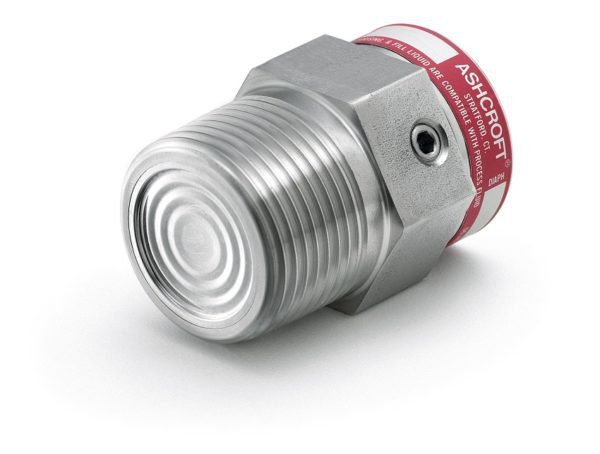

330 All-Welded Flush Mini Diaphragm Seal

The Ashcroft® 330 all-welded flush mini-diaphragm seal protects pressure measuring instruments. Used to ensure process compatibility, they are also applied when process media exhibit pulsation and a potential for plugging or freeze-up. An ideal choice for limited space applications.

Key Features:
  • Compact and lightweight design
  • All-welded construction
  • Flush diaphragm; eliminates clogging or process accumulation
  • Volumetric displacement; For use with 3 1/2″ pressure gauges or smaller (60 to 3,000 psi)
  • Pressure rated up to 3,000 psi
Applications:

Process Market:
Pulp and Paper
Chemical and Petrochemical

Medical & Life Sciences Market:
Pharmaceutical
Food and Beverage

Specifications

Certifications & Approvals

Datasheets & Instruction Manuals

Drawings

Resources & Tools

Min/Max Guide

IMPORTANT! When selecting a diaphragm seal or isolation ring, refer to the Min/Max Guide (PI page) for compatibility with this gauge.
