ZT61 High Purity, Surface Mount Pressure Transmitter with Display

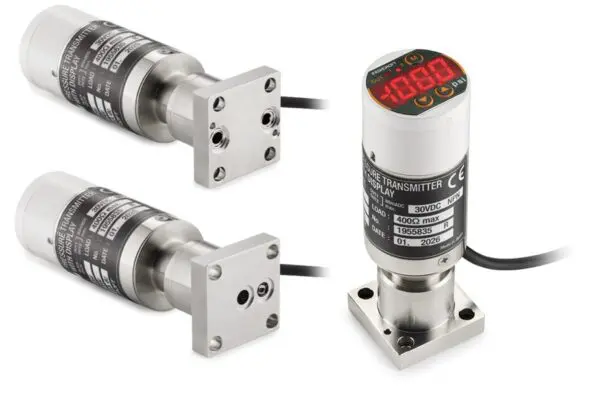

The Ashcroft® ZT61 high purity transmitter with display is designed for use in UHP gas and fluid delivery systems. Its compact design allows for high density installations, while the Co-Ni and 316L electropolished stainless steel wetted material allows for rapid dry-down times. It incorporates an LED digital display which features the ability to program functions such as scaling, loop check, comparator output and several other functions suitable for use with semiconductor processes and high purity gases.
Key Features:
- Bright easy to see LED display with two independent NPN or PNP switch outputs
- Available in gauge and compound ranges
- 4-20 mA, 1-5 Vdc or 0-10 Vdc
- 316L Stainless Steel and Copper Nickel wetted parts for protection against corrosion
- 7 Ra (0.18 μm) surface finish
- ISO Class 1 cleanroom packaged (triple bagged)
- CE approved and RoHS compliant
- C and W-Seal process connections
Applications:
Industrial:
High Purity Gas Delivery Systems
Gas cabinets & Gas Sticks
Tool-level UHP gas panels
Hydrogen & specialty gas systems
Valve manifold boxes (VMBs)
Bulk gas skids
Product Information
Specifications
- Accuracy
- ±0.50%, ±0.75% or ±1.0% of span @ 73 °F (23 °C) Accuracy includes the effects of linearity, hysteresis and repeatability
- Stability
- ±0.25% Span/year
- Outputs
- 1-5 Vdc (3 Wire)
- 4-20 mA (2 Wire)
- 0-10 Vdc (3 Wire)
- Pressure Ranges
- Gauge: 0-45 psi to 150 psi
- Vacuum & 45 psi to Vacuum & 150 psi
- Process Connection
- 1.125˝ Surface Mount (Type W and C Seal)
- Surface Finish
- 7 Ra (0.18 μm)
- Wetted Material
- UC Grade: Co-Ni
- EP Grade: 316L Stainless steel
- Non-Wetted Materials
- Polycarbonate ABS (UL94V-0)
