Diaphragm Seals and Isolators
Find the optimal AshcroftĀ® diaphragm seals and isolation rings for your application by using the filtering options provided.
AshcroftĀ®Ā diaphragm seals and isolation rings protect valuable instruments from potential damage caused by corrosive media or clogging from sludge or slurries, especially in wastewater processing. Diaphragm seals are offered in a variety of configurations with a wide selection of compatible wetted materials, such as 316 stainless steel, Monel and Tantalum. Isolation rings are available in different diameters for integration into piping systems. They provide a contiguous, flexible inner wall that deflects to equally pressurize the fill fluid into the pressure measuring device.
Showing 1-12 of 8 products
202-203 Flanged Diaphragm Seals
The AshcroftĀ® 202 and 203 diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, they are also applied when media can potential...
102-103 Flanged Diaphragm Seals
The AshcroftĀ® 102 and 103 flanged diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, they are also applied when media exhibit...
DF Flush Flanged Diaphragm Seal
The AshcroftĀ® DF flush flanged diaphragm seal uses a diaphragm welded directly to the assembly flange. This eliminates much of the cost associated with bulky...
702-703 Flanged High Displacement Diaphragm Seals
The AshcroftĀ® 702 and 703 high-displacement diaphragm seals are used with low differential pressure gauges rated for elevated static pressures up to 750 psi. Used...
402-403 Flanged All-Welded Diaphragm Seals
The AshcroftĀ® 402 and 403 flanged all-weld diaphragm seals protect pressure measuring instruments. Used to ensure process compatibility, they are also applied when process media...

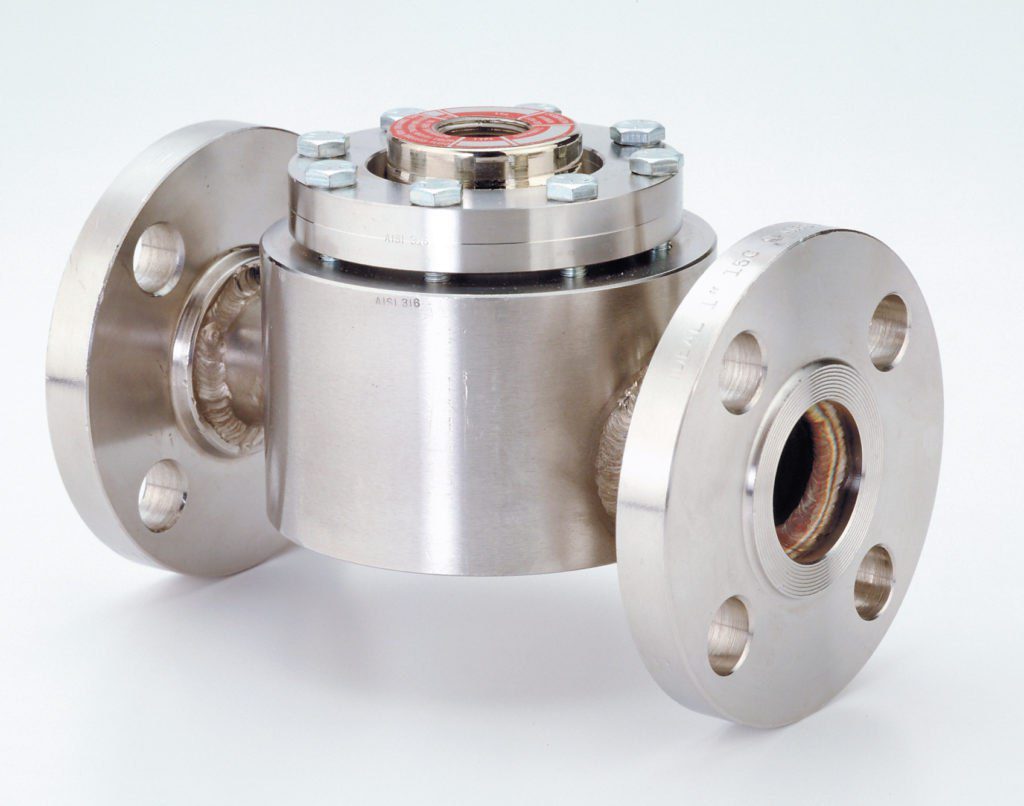

106 In-Line Flanged Diaphragm Seal
The AshcroftĀ® 106 in-line flanged diaphragm seals protect pressure measuring instruments. Mounted in-line with the process piping, it is used in applications where continuous flow...
206 In-Line Flanged Diaphragm Seal
The AshcroftĀ® 206 in-line flanged diaphragm seals protect pressure measuring instruments. Mounted in-line with the process piping, it is used in applications where continuous flow...
302-303 Flanged Diaphragm Seals
The AshcroftĀ® 302 and 303 diaphragm seals protect pressure measuring instruments. Used when process compatibility is required, they are also applied when media exhibit high...Related Resources
