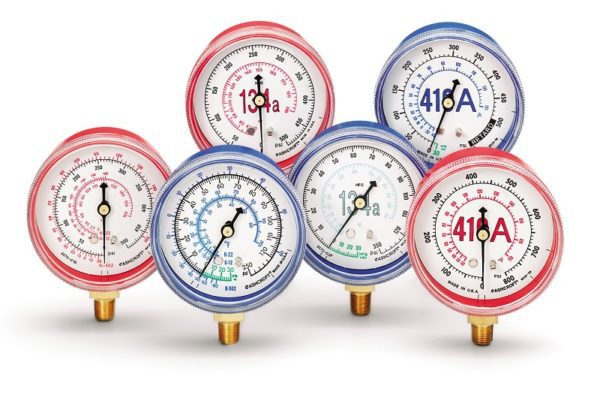

1007P and 1001T XOR Refrigeration Pressure Gauge
The Ashcroft® 1007P and 1001T XOR refrigeration pressure gauges are reliable instruments used in refrigerant test, recovery and recycling markets. An ideal solution when pressure measurement is needed.
Key Features:
- PowerFlex™ movement provides superior resistance to shock, vibration and pulsation; extends product life and reduces maintenance costs
- FlutterGuard™ eliminates pointer flutter for optimum readability
- Easy access window allows for minor span adjustments
- 1007P ABS case offers durability and corrosion resistance
- 1001T gauges are tested to detect leaks as small as 2.8 x 10 -4 cc per second
Applications:
Industrial Market:
Refrigeration Manifolds
Refrigerant Recovery and Recycling Equipment
Automotive Testing
HVAC/R – Industrial and Residential Air Conditioning
Specifications
Certifications & Approvals
Data Sheets & Instruction Manuals
Drawings & Product/Technical Information
Accuracy
±1% of span at zero, ±2% of span the first three fourths of scale, ±5% of span the last fourth of scale
Size
1007P: 2½ ̋ , 1001T: 2½ ̋, 3½ ̋
Pressure Ranges
30"HG Vac/0/120 psi retard to 250 psi; 0/400 psi; 30"HG Vac/0/300 psi retard to 500 psi; 0/800 psi
R12-22-502
R134A
R410A
Process Connection Size
1/4 NPT Male
1/8 NPT Male
Process Connection Location
1007P: lower, 1001T: back
Process Connection Material
Brass
Movement
PowerFlex™ movement with polyester segment
Slotted span screw for minor span adjustments
Window
Threaded Polycarbonate
Case/Ring Style
1007P: ABS (blue for low pressure and red for high pressure) 1001T: Steel (painted black)
Dampening
Brass Restrictor
FlutterGuard™
